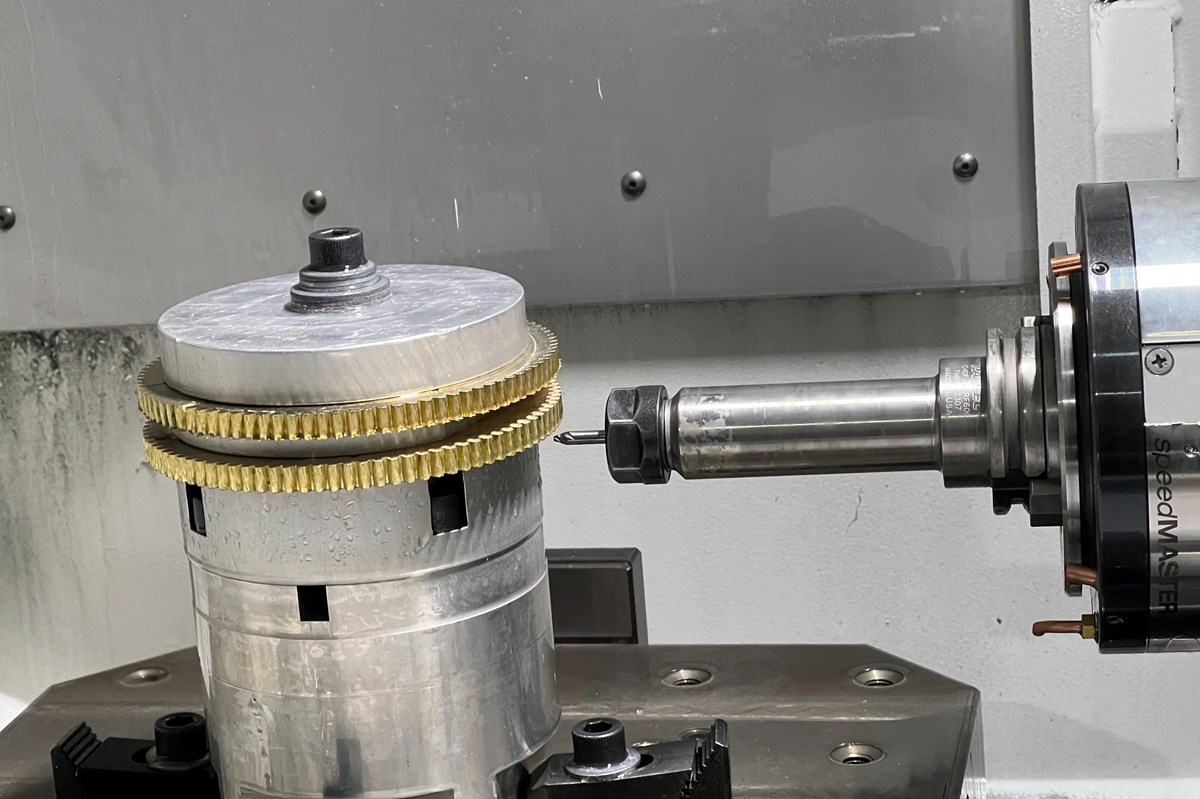

automatic CNC machine milling of metal

When it comes to precision metal parts, you can’t afford mistakes, especially for large production runs. And that’s where horizontal CNC milling stands out. This specialized machining approach takes metal CNC milling to another level. It excels at fabricating detailed or complex shapes and large-scale production with pinpoint accuracy. So, you can count on horizontal CNC milling to make a difference in getting the exact shape and finish you need for your precision metal components, all while speeding up production. In this article, we’ll dive into why horizontal CNC milling stands out, especially when you’re aiming for precision metal parts that need to be flawless.

What Is Horizontal CNC Milling?

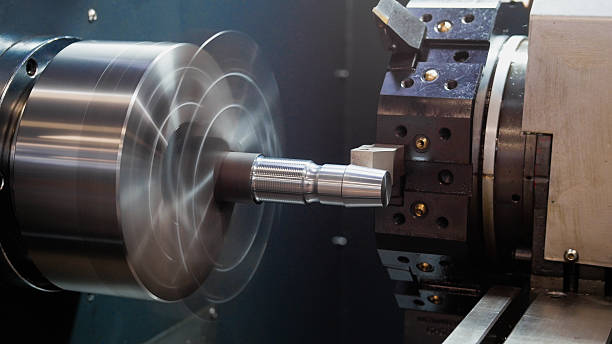

four axis horizontal CNC milling of metal

Horizontal CNC milling is a machining process in which the cutting tool is positioned horizontally relative to the workpiece. Unlike vertical milling, where the spindle is set vertically, horizontal milling machines have the spindle mounted parallel to the ground. This setup makes it possible to machine parts with greater efficiency, especially when dealing with larger, more complex pieces.

With multiple tools attached to a rotating arbor, horizontal CNC milling machines are perfect for cutting metal parts from several angles without constantly repositioning the workpiece. Moreover, the horizontal orientation allows for better material removal and faster cycle times, making it a top choice for aerospace, automotive, and heavy machinery manufacturing industries.

Is Horizontal CNC Milling a Good Fit for Precision Metal Parts?

Horizontal CNC milling is an excellent fit for precision metal parts. Its unique design and functionality are tailored for precision machining, which is why it’s a go-to in aerospace, automotive, and medical devices. These fields require parts with complex shapes and tight tolerances, and horizontal CNC milling delivers exactly that.

Let’s explore why this method works so well for precision machining. These benefits below make it an ideal solution for many precision manufacturing projects.

High Precision and Consistency

Horizontal CNC milling allows for more precise cuts, which is crucial when working with metal parts that demand tight tolerances. The horizontal spindle setup enables the machine to handle parts from multiple angles without needing to reposition them manually. This ensures that every cut is spot-on, reducing the margin for error. This precision guarantees uniformity across the board when you’re producing hundreds or even thousands of parts, like in the automotive industry.

Efficient Material Removal

The horizontal orientation allows gravity to assist in removing chips from the cutting area. Why is this important? When chips pile up, they create friction and heat, impacting precision and even damaging the part. By efficiently clearing away these chips, horizontal milling helps maintain a clean cutting environment. This leads to faster machining times and better precision, especially for parts that require a lot of material to be milled away, like large metal components for machinery.

Capability to Handle Complex Geometries

When machining complex parts like intricate gears, valves, or aerospace components, horizontal CNC milling shines. Its ability to access multiple sides of a part with minimal repositioning reduces the chances of errors. For example, a part with deep cavities, angled cuts, or complicated contours can be milled in one setup. So, this approach helps save time and increases precision, as fewer setups mean fewer opportunities for misalignment.

Also, it’s possible to machine complex features like undercuts and internal slots with high accuracy because of how the machine works. If you’re in a field where complex geometries are the norm, this type of CNC milling can save you both time and frustration.

Improved Surface Finish

Precision metal parts often need more than accurate dimensions; they sometimes require a quality surface finish. A good surface finish can affect how well parts fit together, how long they last, and even how they perform. Horizontal CNC milling provides an advantage here by helping to reduce vibration and chatter during the cutting process. This leads to smoother surfaces and fewer tool marks.

Furthermore, the machine’s efficient chip removal system prevents chips from scratching or damaging the part’s surface during machining. This is especially important when working with metals prone to scratching, such as aluminum or softer steel.

Versatility with Different Materials

Precision metal parts are often made from various metal materials, such as lightweight aluminum, tough stainless steel, or exotic metals like titanium. Horizontal CNC milling machines are versatile and can handle these materials, maintaining high precision and delivering a clean, accurate finish. This flexibility makes it easier to meet the diverse needs of several industries, where various materials are often required for different parts of a project.

Pro Tips for Horizontal CNC Milling Metal Parts

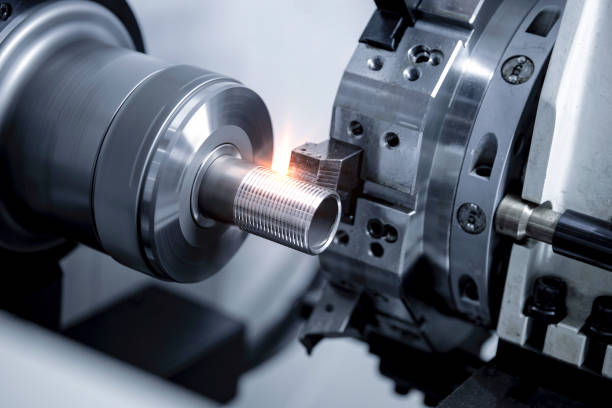

metal cutting and forming using CNC machines in machinery industry

Horizontal CNC milling is a go-to method for precision metalwork, but getting top-notch results takes practice and knowledge. Whether you’re new to this or looking to fine-tune your process, we have compiled some pro tips to help you get the best performance from your milling projects. By following these tips, you can make the most of horizontal CNC milling for your precision metal parts.

Choose the Right Cutting Tools

One of the first things to consider is your cutting tools. Different metals require different tools to get the best results. Therefore, picking the right ones makes a big difference in the quality of your finished parts. Use carbide tools for tougher materials like steel or titanium because they stay sharper longer and can handle higher heat levels.

High-speed steel (HSS) tools might be a better option for softer metals like aluminum, although they tend to wear down faster when used on more rigid metals. Even the best tools will get dull over time, so keep a schedule for tool maintenance so you can swap them out before they affect your work.

Optimize Your Speeds and Feeds

Finding the right balance between speed and feed rate is crucial for a smooth milling process. When you cut too fast, the tool can overheat, leading to quick wear and low-quality cuts. Conversely, going too slow can waste time and reduce your productivity. For most metals, you’ll want to use a slower cutting speed with a steady feed rate to ensure you don’t damage your tools and still get a quality finish.

Use the material and tool manufacturer’s guidelines for speeds and feeds as a starting point. From there, you can adjust depending on how your project is going. It’s always better to start slowly and speed up once you’re confident.

Keep Chips Under Control

Metal chips, or shavings, can quickly pile up during horizontal CNC milling. If left unchecked, they can cause surface scratches on your part, clog up the cutting area, or even damage the tool. One advantage of horizontal milling is that gravity helps clear some of the chips naturally, but it’s still essential to use coolant or compressed air to keep things clean.

That said, invest in a suitable coolant or air blower system. Coolant not only helps remove chips but also keeps your tools cool, extending their life and maintaining the quality of your cuts. An air blower can also help, but make sure it’s powerful enough to push away the heavier metal chips without creating a mess.

Use Fixtures for Better Stability

When milling metal parts, keeping the workpiece stable is critical to achieve precision. A slight shift during the milling process can result in a bad cut, wasted material, or even damage to your machine. Fixtures and clamps ensure that your metal stays in place during milling, which helps you achieve accurate cuts and avoid costly mistakes. Hence, take extra time to secure your workpiece before starting the machine. It’s worth spending the extra time to get this step right.

Choose the Right Material for Your Job

Horizontal CNC milling works well with various metals, but choosing the suitable material for your project is just as important as picking the right tools. Understanding how the material reacts to cutting forces and heat will help you get the best results. When in doubt, consult material datasheets to learn how each metal responds to milling. This can save you time and effort, as you’ll know exactly what to expect from each material.

Conclusion

Horizontal CNC milling is a top choice for machining metal parts due to its impressive precision, speed, and flexibility. Whether you’re dealing with complex designs or working on high-volume projects, this method provides the accuracy you need. Every step matters in achieving quality metal parts, from choosing the correct cutting tools to optimizing speeds. With the right tools and proper attention to detail, you can get the best results from your milling process. After all, horizontal CNC milling could be precisely what you need for your next CNC milling project to deliver exceptional results.

At Zintilon, we deliver high-quality precision CNC milling services tailored to your project needs. Contact us today to discuss how we can assist you in achieving your manufacturing goals.
